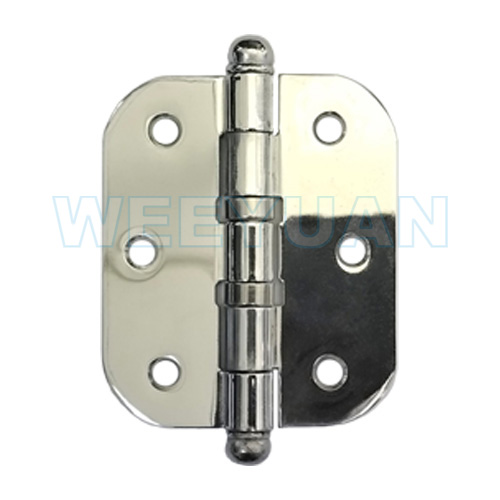

The term “Dobradiças de Portas” refers to a common type of hinges used primarily in doors, and furniture door. It consists of two rectangular metal plates (called “leaves”) joined by a pin, allowing for rotational movement. Butt hinges are typically mortised (recessed) into the door and frame for a flush fit when closed.
Available in various finishes (e.g., Chrome Plated, Antique Brass, Satin Chrome, Satin Nickel, Black). Can be loose-pin (removable for easy door removal) or fixed-pin (permanent). Doors (interior & exterior)
| Butt Hinge Description | Optional Production | |
|---|---|---|
| Item No. | BRH001 | With 2 Bearing or 2 Ball Bearing, or without |
| OEM / ODM | Supported | |
| Product Dimensions | 3 in. x 2-1/2 in. x 2mm (76.2mm x 63.5mm) | 3-1/2″ x 3″, 3″ x 2-1/2″, 3-1/2″ x 2″, 4″ x 3-1/2″ |
| Material | Steel | Steel or Stainless Steel |
| Radius Corner | 16R | 16 Radius, Square Corner |
| Finish | Chrome Plated (CP) | Antique Brass (AB), Chrome Plated (CP), Satin Chrome (SC), Satin Nickel (SN), Black (B), etc. |
| Screws | Packaging with screws | |
| Packaging | Cartons, w/ screws | Cartons or Customizable packaging |
